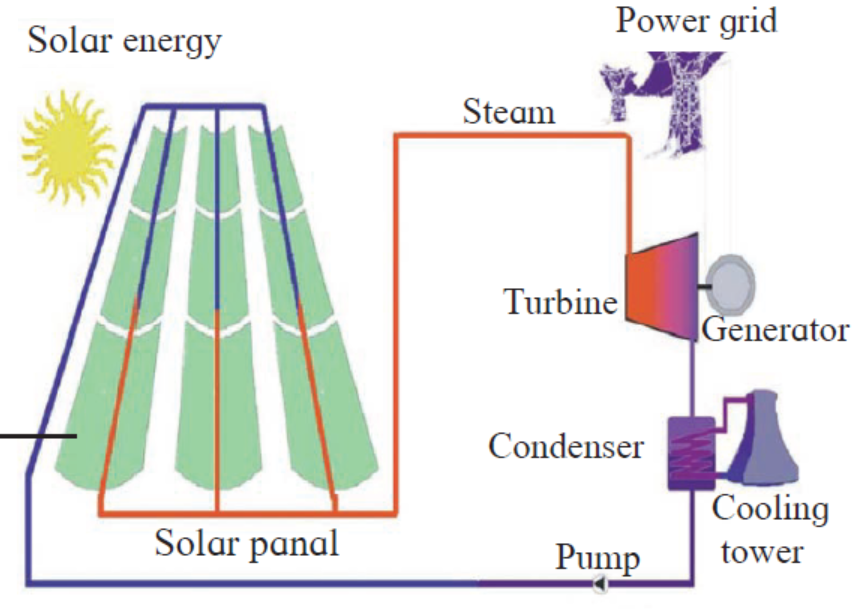

Draw a schematic diagram of solar thermal electric energy generation.
The reflectors in the solar panels reflect and concentrate solar radiation on absorbers. The absorbers convert solar energy into heat energy. Using this heat energy, steam is generated to drive the turbine and generator.
Solar-Thermal

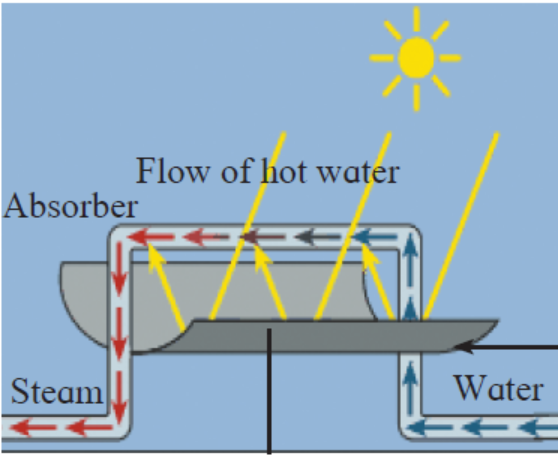

The working of the reflectors is shown in the figure below.
Solar Reflector
